ELE_UPS Battery Rack
£24.90 incl.vat
ELE_Electrical-Equipment_UPS-BatteryRack

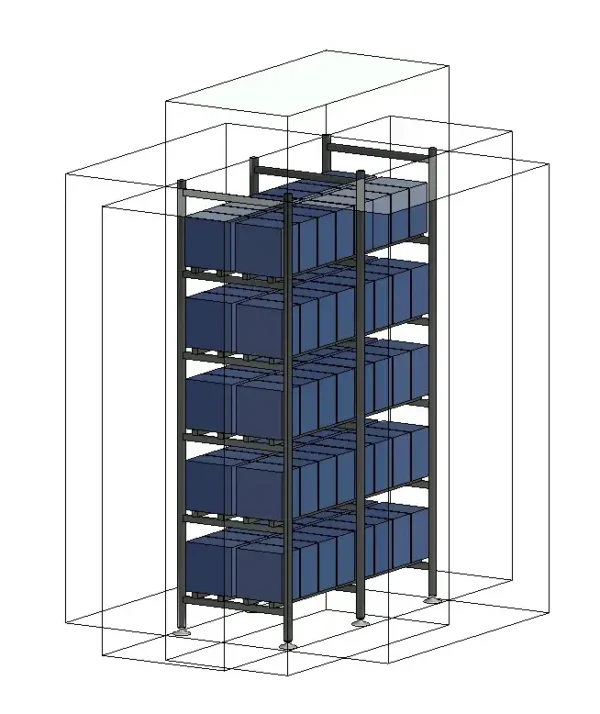

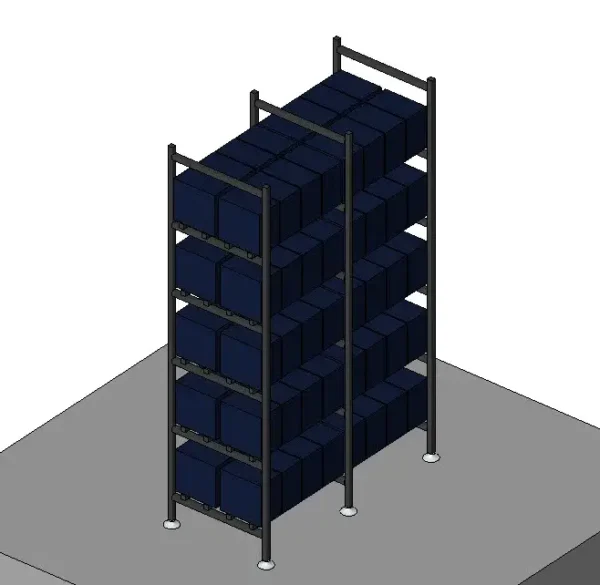

3D Model of the 5 Tier 2 Row Cladded Stand with 80 x 12FLB200P Batteries
Description
Product Description
3D Model of the 5 Tier 2 Row Cladded Stand with 80 x 12FLB200P – FIAMM FLB RANGE OF VALVE REGULATED BATTERIES
Part of the Revit Premium Subscription!Â

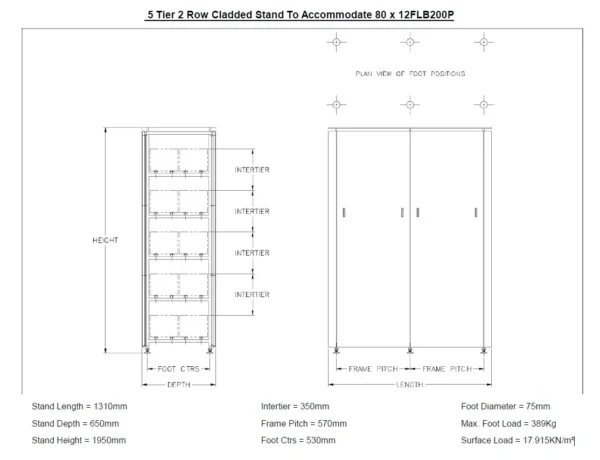

Specifications:
- Size (mm):
- Stand Length = 1310mm
- Stand Depth = 650mm
- Stand Height = 1950mm
- Intertier = 350mm
- Frame Pitch = 570mm
- Foot Ctrs = 530mm
- Foot Diameter = 75mm
- Max. Foot Load = 389Kg
- Surface Load = 17.915KN/m²
Whether you’re an electrical engineer, architect, or Revit designer, this Revit family is engineered to elevate your Revit projects. Its meticulously crafted design meets industry standards, ensuring compatibility and exceptional performance. With this Revit component, you’re not just buying a product but investing in quality, reliability, and design excellence.
Make PROJECT DESIGN (IO) your go-to choice for all your Revit projects.
Additional information
| Revit Version | |
|---|---|
| File Size | |
| File Type | |
| Parametric behaviour | |
| Connector | |
| Type | |
| COBie data |
