LTF_Lighting-Fixture_Custom-Festoon

Description

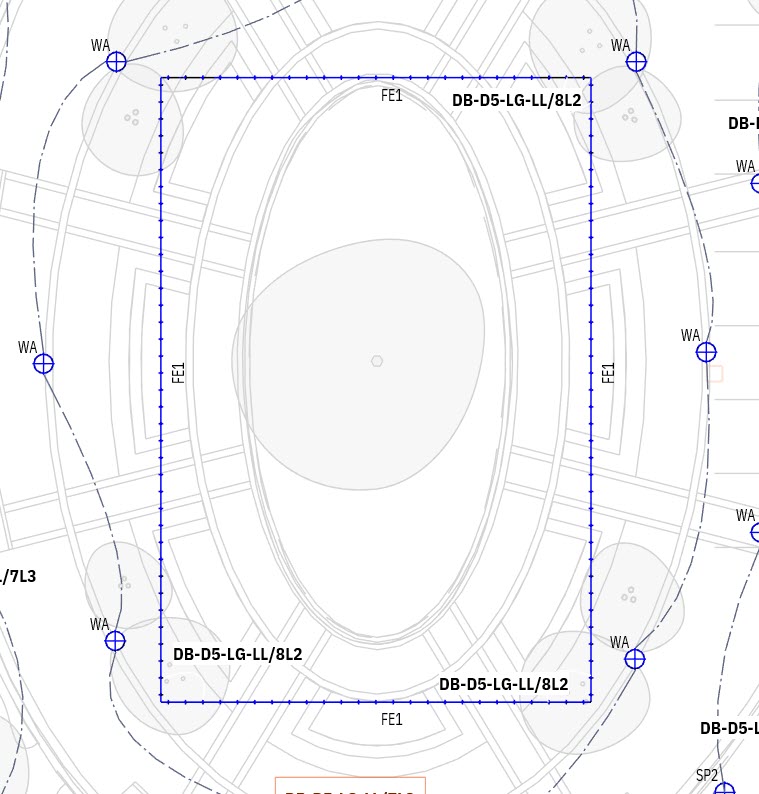

Enhance your BIM projects with the Generic Festoon Lighting Fixture Revit Family, a high-quality parametric model designed for flexible integration into your Revit project. T

Key Features:

✅ 360° Rotation on X-Y-Z Axis – Easily mount on walls, floors, and ceilings with full rotational flexibility.
✅ 4Way Symbol Offset Control – Adjust symbol position parametrically.
✅ Dynamic Label & Parameters – Includes editable parameters for mounting height, type, sub-type, and rating, ensuring project-specific adaptability.
✅ Dynamic Electrical Load  – Instance-based load auto-adjusts itself depending on the length & number of lamps.
✅ COBie Data parameters– Pre-filled COBie parameters for enhanced information management in BIM workflows.
✅ Visibility Range Control – Adjust visibility settings with parametric controls. (do not worry about the view region)

Why Choose This Revit Family?

🔹 Fully Parametric & Scalable – Adapt the model effortlessly to different project requirements.
🔹 BIM-Optimised – Designed for seamless Revit integration with minimal performance impact.
🔹 Streamlines Workflows – Pre-configured with industry-standard data to improve design efficiency.

File Details:

📁 File Format: .RFA (Revit Family)
📂 Compatible Versions: Revit 2024+
📏 Optimised for: Electrical, Architectural & MEP Workflows

Download Now!

Part of the Revit Ultimate Subscription!
