Product Description

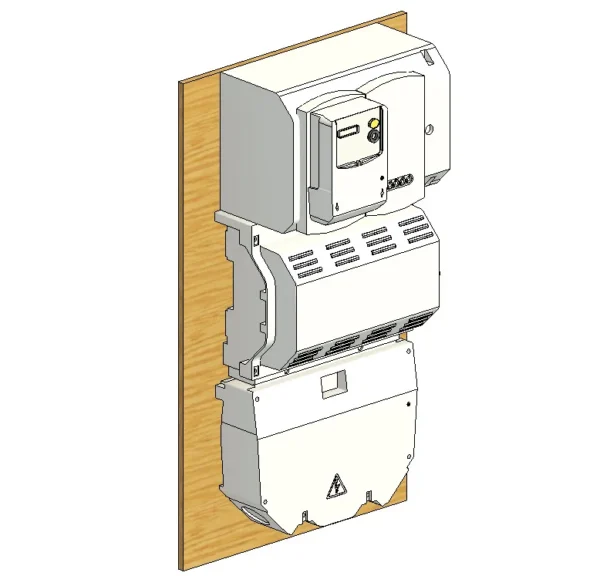

3D Model of Current Transformer Metering Chamber (CTMC) Direct coupled to Lucy Heavy Duty Cut-Out fitted with the Honeywell (Elster) A1700 MID High Voltage 5A CT/VT Connected Smart Meter (UK504-023_MID)

Specifications:

• Identity Data:
  • Date Created: 2023-08-04
  • Date Modified: 2023-12-11
  • Version: v22.1.1
  • Revit Version: 2022
• Size (mm):  700w x 1200h x 373d
• Host: Face
• Material and Finishes:
  • Body: PD_MAT_WHI_Plastic
  • Button: PD_MAT_YEL_Plastic
  • Screen: PD_MAT_CLR_Acrilic
  • Fixing: PD_MAT_ALM_Aluminium Finish
  • Backplate: PD_MAT_Plywood-Sheat
• Parametric behaviour: No
• Electrical Connector: No
• COBie data: No
• File Size: 7.224 KB

Part of the Revit Premium Subscription!

Whether you’re an electrical engineer, architect, or Revit designer, this Revit family is engineered to elevate your Revit projects. Its meticulously crafted design meets industry standards, ensuring compatibility and exceptional performance. With this Revit component, you’re not just buying a product but investing in quality, reliability, and design excellence.

Make PROJECT DESIGN (IO) your go-to choice for all your Revit projects.
