ELF_Dado MK_Prestige3D

Description

ELF_Electrical-Fixture_Dado-MK_Prestige3D

Product Description

UK-standard MK Prestige 3D Dado Trunking Complete Parametric Family!

Includes the following built-in components:

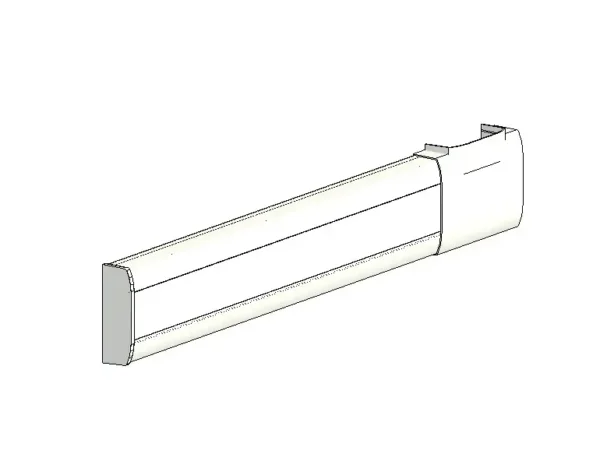

• ELFc_Electrical Fixtures_Dado-MK_Prestige3D-EndCap-VP183

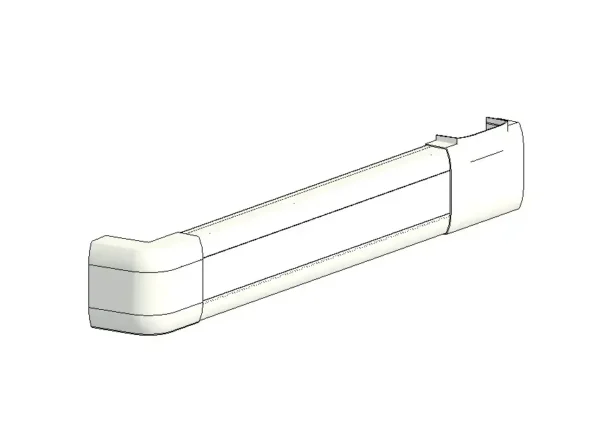

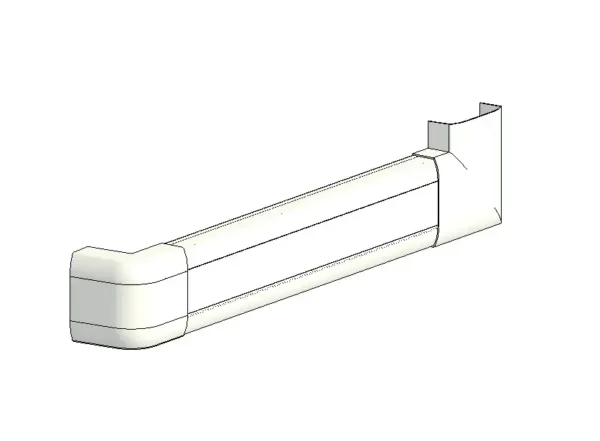

• ELFc_Electrical Fixtures_Dado-MK_Prestige3D-ExternalCorner-VP182

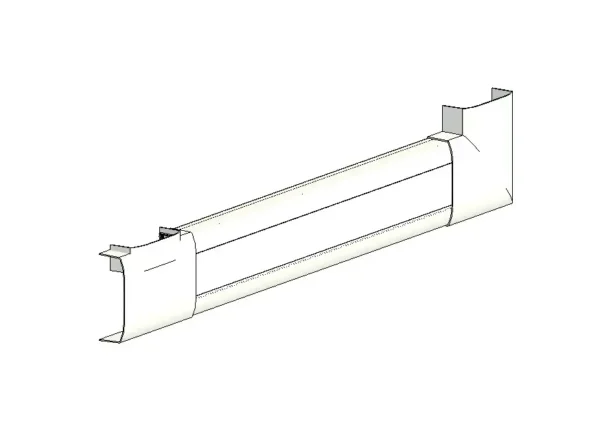

• ELFc_Electrical Fixtures_Dado-MK_Prestige3D-FlatAngle-VP185

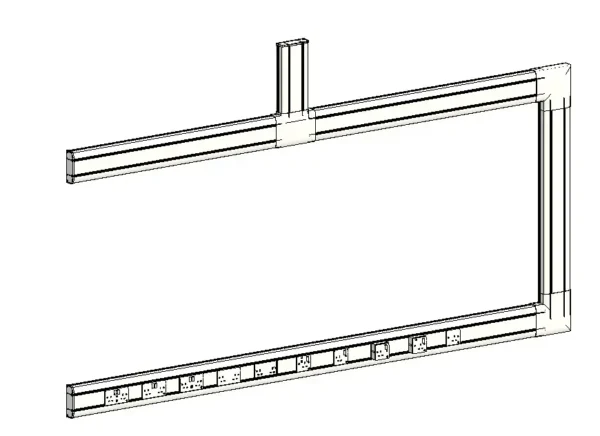

• ELFc_Electrical Fixtures_Dado-MK_Prestige3D-FlatTee-VP187

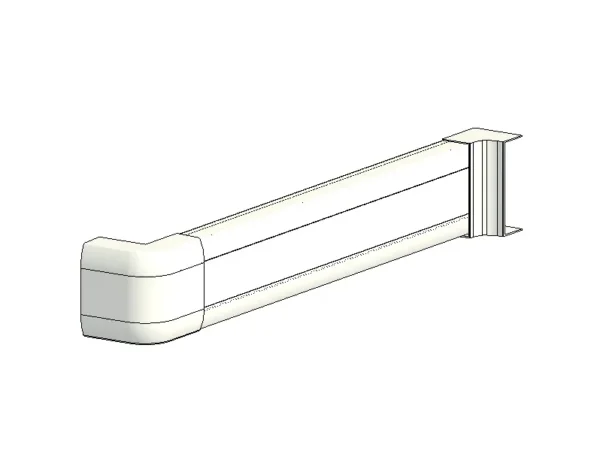

• ELFc_Electrical Fixtures_Dado-MK_Prestige3D-InternalCorner-VP181
• clearance zone

It can be mounted at any angle, offering unparallel flexibility, a selectable mounting height label via shared parameters

All components are driven by Yes/No parameters, allowing use of any component at both ends of the dado

The visibility range can be controlled by ‘extend to ceiling’ or floor parameters

You can change colour effortlessly via the Material property for seamless integration into your project.

Part of the Revit Premium Subscription!

Whether you’re an electrical engineer, architect, or Revit designer, this Revit family is engineered to elevate your Revit projects. Its meticulously crafted design meets industry standards, ensuring compatibility and exceptional performance. With this Revit component, you’re not just buying a product but investing in quality, reliability, and design excellence.

Make PROJECT DESIGN (IO) your go-to choice for all your Revit projects.
