ELE_Distribution Boards

Description

Product Description

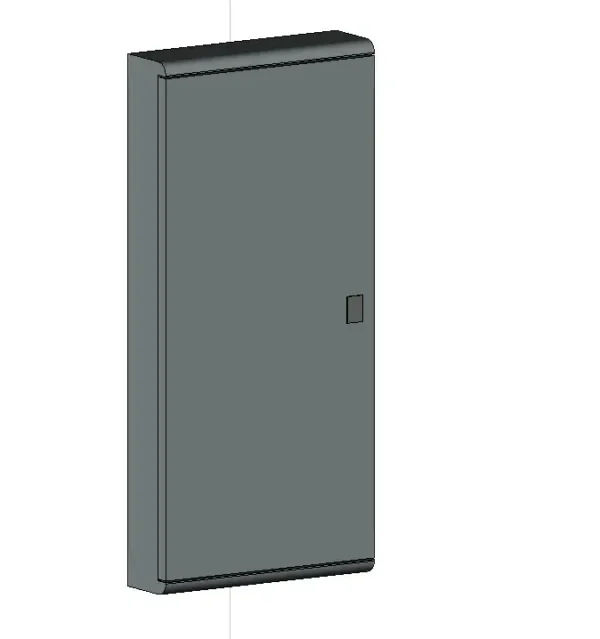

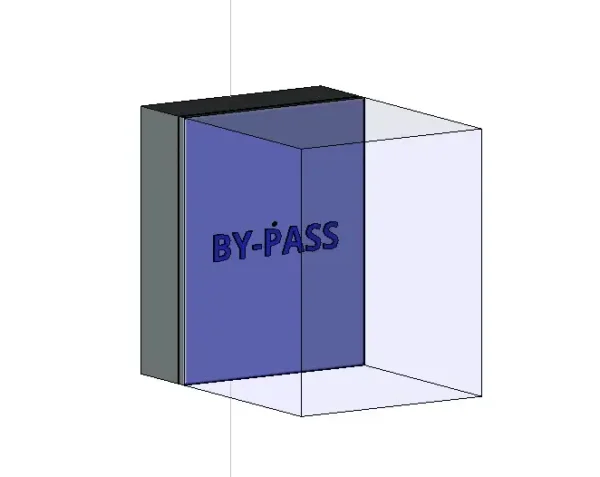

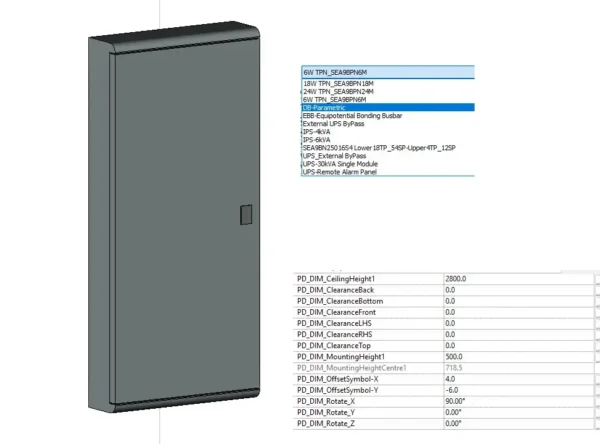

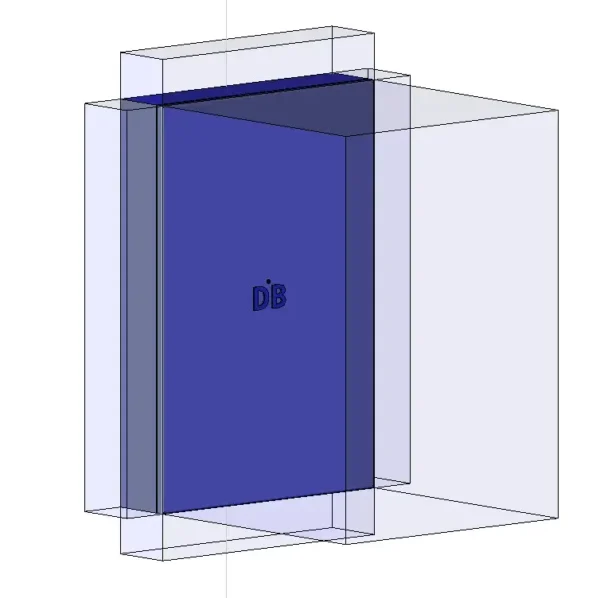

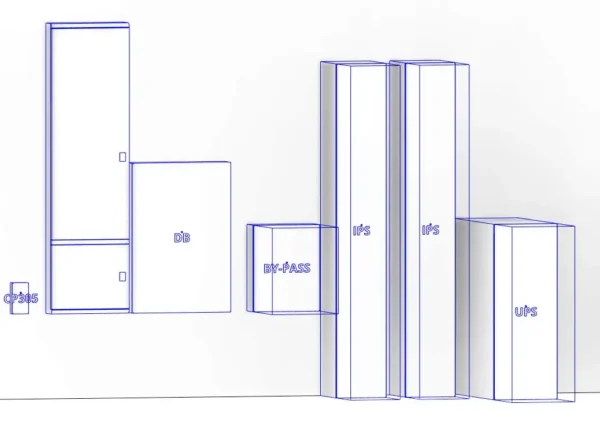

3D Parametric Model of Distribution Board – TPN & SPN – includes generic Distribution Board with fully adjustable size and sample models to represent Schneider Electric  6W, 18W and 24W TPN Type B Distribution Boards, UPS, IPS Panels and more. Very adaptable, includes symbol and parametric label reporting mounting height name, rating sub-type.

It’s the only Distribution Board model you will ever need!

Part of the Revit Premium Subscription!

Specifications:

• Identity Data:
  • Date Created: 2024-03-23
  • Date Modified: n/a
  • Version: v22.1.1
  • Revit Version: 2022
• Size (mm): Variable
• Host: Face/Reference Plane
• Material and Finishes:
  • Frame: PD_MAT_GLV_Steel
• Parametric behaviour: Yes
• Electrical Connector: Yes – Parametrically driven 240V & 400V
• COBie data: No
• File Size: 2,940 KB

Whether you’re an electrical engineer, architect, or Revit designer, this Revit family is engineered to elevate your Revit projects. Its meticulously crafted design meets industry standards, ensuring compatibility and exceptional performance. With this Revit component, you’re not just buying a product but investing in quality, reliability, and design excellence.

Make PROJECT DESIGN (IO) your go-to choice for all your Revit projects.
