3D Parametric Model of the complete range of ETS standard switchroom earth-bars with M10 x 35mm brass machine screws 50mm centres are provided between each screw fixing to allow for connection of cable lugs up to 400mm² or 50mm wide earthing tapes, each fixing is provided with two brass hexagon nuts and brass washer.
Description
ELF_Electrical-Fixture_EarthBar
Product Description
3D Parametric Model of the complete range of ETS standard switchroom earthbars with M10 x 35mm brass machine screws 50mm centres are provided between each screw fixing to allow for connection of cable lugs up to 400mm² or 50mm wide earthing tapes, each fixing is provided with two brass hexagon nuts and brass washer.

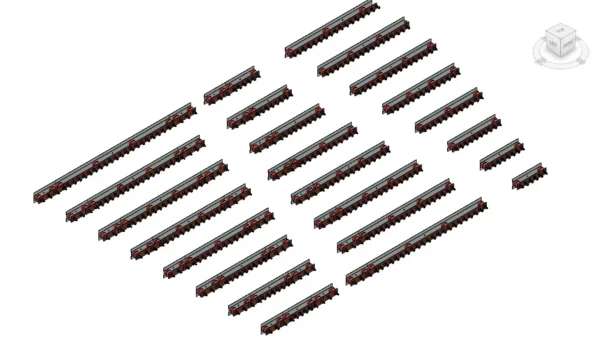

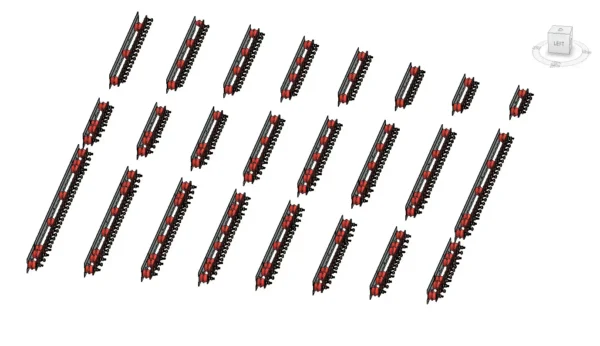

The complete range includes 24 types of earthbar:

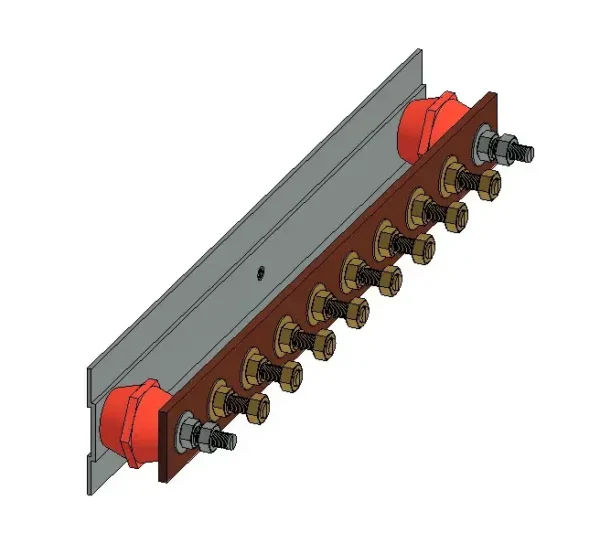

- EBC 004 – EBC 020_ 4 to 20 way earthbars without link
- EBC 104 – EBC 120_ 4 to 20 way earthbars with single link

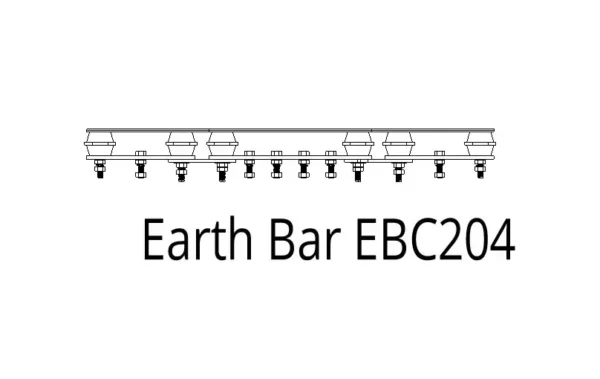

- EBC 204 – EBC 220_ 4 to 20 way earthbars with double link
It can be mounted at any angle, offering unparallel flexibility, a selectable mounting height label via shared parameters
The visibility range can be controlled by ‘extend to ceiling’ or floor parameters
Whether you’re an electrical engineer, architect, or Revit designer, this Revit family is engineered to elevate your Revit projects. Its meticulously crafted design meets industry standards, ensuring compatibility and exceptional performance. With this Revit component, you’re not just buying a product but investing in quality, reliability, and design excellence.
Make PROJECT DESIGN (IO) your go-to choice for all your Revit projects.
