Revit Electrical Project Template 2024
£491.25 incl.vat
Revit Electrical Project Template 2024, updated to v24.2.2: ISO 19650 compliant, 90 schedules, 66 view templates, LV and earthing schematic samples, containment colour palette, sample DB, socket and luminaire families. Full guide included.
Description

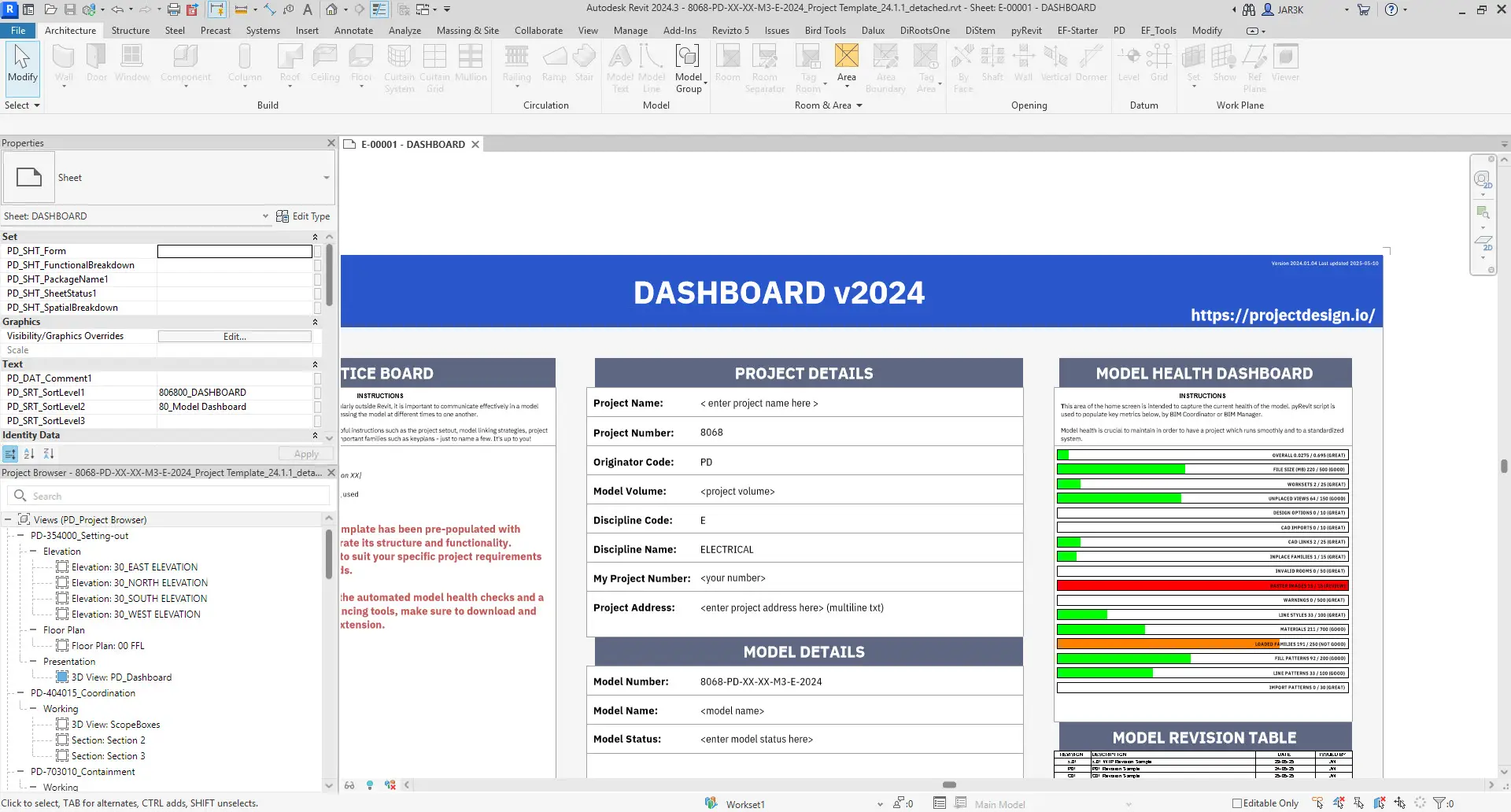

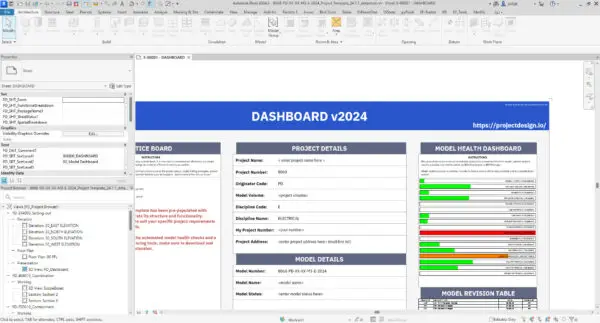

Revit Electrical Project Template 2024 is a BS EN ISO 19650 compliant starter kit for electrical design. Open the file, update the Project Dashboard and start modelling: 90 schedules, 66 view templates, 121 view filters, 23 legends, dynamic sheet families and a live Model-Health Gauge, all wired to a single shared parameter set.
Updated in v24.2.2: rebuilt electrical settings (44 PD load classifications, PD_DF demand factors, LSZH plus FP100, FP200+ and FP400 wire types), a consolidated 15-storey office LV schematic sample, a new Earthing Schematic sample, AV containment, a print-distinguishable colour palette across every containment filter, and revised underground duct bend radius lookup tables.
The template embeds £199.50 of premium families (distribution board, twin socket and three parametric luminaires), QR-enabled title blocks, and adds further automation with the free pyRevit PDtool extension. Clean drawings, accurate schedules, audit-ready metadata.
Full illustrated setup guide and the v24.2.2 changelog: https://projectdesign.io/project-template_rvt_2024/
