Revit Electrical Project Template 2022

Description

Revit Project Template

“Give me six hours to chop down a tree and I will spend the first four sharpening the axe.” — Abraham Lincoln

That’s the ethos behind this Revit project template: not another half-baked starter file, but a purpose-built, pre-honed digital axe for AEC professionals who are tired of wasting hours on setup.

Why this template?

Because it’s the best electrical Revit template out there. Simple as that.

We spent over 120 hours building and testing this template — drawing on years of project delivery across the UK and Saudi Arabia. It’s fast, clean, and built to do the job properly.

This is the ProjectDesign Revit 2022 Template — made for electrical contractors who take BIM seriously.

Key Features at a Glance

• Fully aligned with UK BIM standards and Revit 2022 functionality.

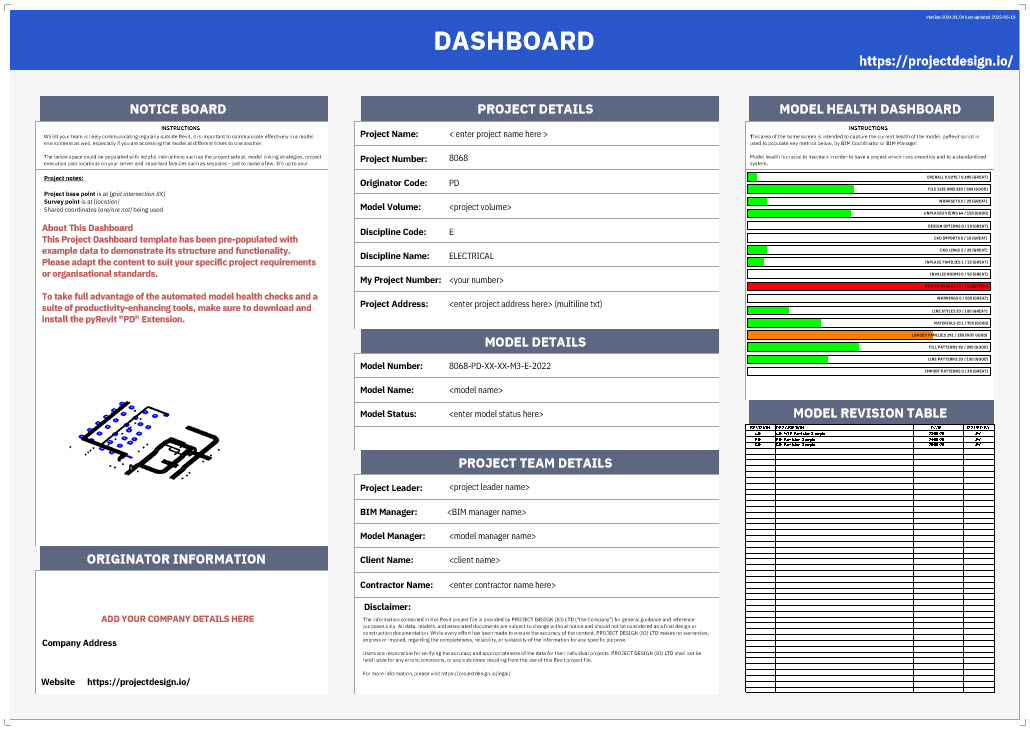

• Includes preconfigured views, sheets, title blocks, and annotation standards.

• Tailored worksets, filters, browser organisation, and phasing logic.

• Embedded shared parameters for consistent tagging and scheduling.

• Works seamlessly with IFC, COBie, and coordination platforms like Revizto.

• Designed to minimise file bloat while maximising clarity and speed.

• Field-tested on real projects across the UK and Saudi Arabia.

Plus: Premium Content Included

Comes bundled with three professionally-developed Revit families worth £125:

• Distribution Board Family — parametric enclosure, spare way logic, DIN rail calc

• Socket Family — UK single/twin sockets, data, USB; drives power & lighting legends

• Luminaire Family — recessed/surface, size-adaptive, BREEAM-ready

No fluff. Just proper Revit content you’ll actually use.

Want the Full Breakdown?

All features are detailed on the product documentation page here. It includes annotated screenshots, examples and answers to the questions you didn’t know you should ask.

Who’s It For?

• BIM Managers tired of reinventing the wheel (badly).

• Project Leads who want clean, standards-compliant outputs without micromanaging.

• Electrical Engineers  who want to get the job done!

• Small firms trying to scale up — the smart way.

Future-Proof Design

We don’t lock you into vendor specific product. Instead, we offer a solid, intelligent base for your project’s needs. Start clean, customise smartly, and scale efficiently.

Ready to sharpen your axe?
