NCD_Indicators

Description

Product Description

3D Parametric Model of Austco Tacera range Nurse Call Indicator Devices, included with generic rectangular family fully adjustable size.

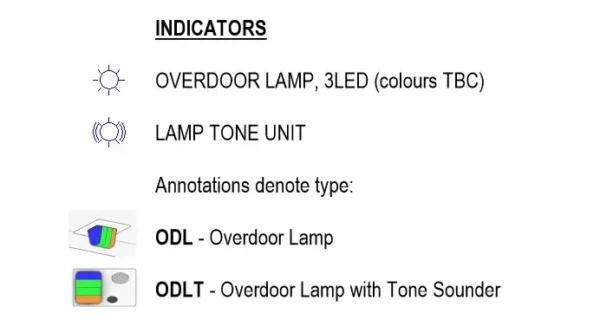

Very adaptable, includes symbols with parametric labels allowing reporting of mounting height, name, rating, and sub-type.

Part of the Revit Ultimate Subscription!

Specifications:

• Identity Data:
  • Date Created: 2023-12-11
  • Date Modified: 2024-02-12
  • Version: v22.1.0
  • Revit Version: 2022
• Size (mm): Variable
• Host: Face/Reference Plane
• Material and Finishes:
  • Body1: PD_MAT_WHI_Plastic
  • Fixing: PD_MAT_BRS_Brass Finish
  • Indicator1: PD_MAT_Display_Black
  • SwitchBody1: PD_MAT_CLR_Acrilic
  • SwitchBody2: PD_MAT_ALM_Aluminium Finish
  • SwitchBody3: PD_MAT_BLK_Plastic
  • SwitchBody4: PD_MAT_Navy_Plastic
  • Label1: PD_MAT_Navy_Plastic
• Parametric behaviour: Yes
• Electrical Connector: Yes – Nurse Call
• COBie data: No
• File Size: 32,348 KB

Whether you’re an electrical engineer, architect, or Revit designer, this Revit family is engineered to elevate your Revit projects. Its meticulously crafted design meets industry standards, ensuring compatibility and exceptional performance. With this Revit component, you’re not just buying a product but investing in quality, reliability, and design excellence.

Make PROJECT DESIGN (IO) your go-to choice for all your Revit projects.
