ELF_Electrical-Fixture Floorbox

£24.90 incl.vat

Parametric 3D Model of the Floor Box Revit Family – create any size you need in three steps, complete with a symbol.

SKU: ELF-264 Category: Tags: , , , ,

Description

Parametric 3D Model of the Floor Box Revit Family – create any size you need in three steps, complete with a symbol.

Key features include:

  • Z-axis control to enable mounting above and below floor
  • Label offset in four directions (X-Y plane)
  • Colour control with a wide range of materials

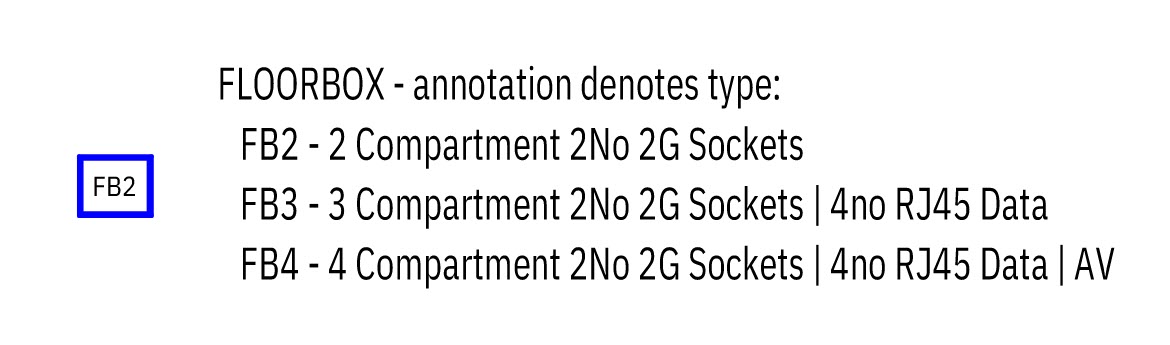

  • Dynamic labels linked to parameters for customizable mounting height, type, sub-type, and rating

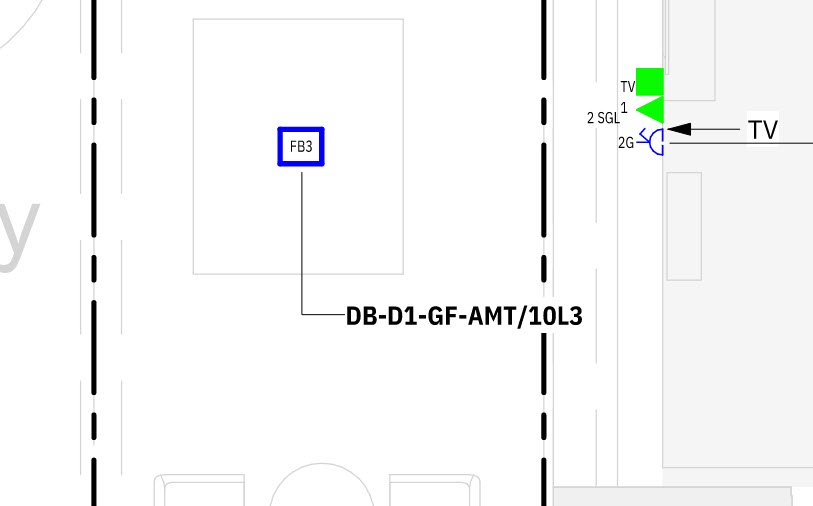

  • Built-in standard PD Symbol

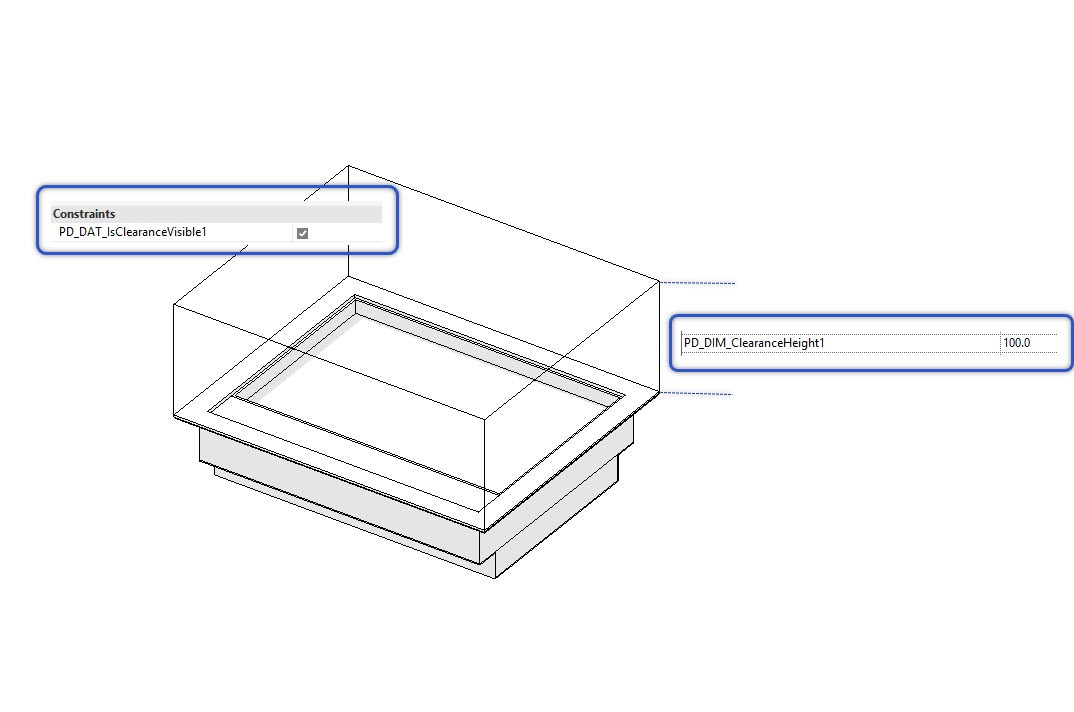

  • Built-in clearance zone (instance type) for automatic clash detection
  • COBie data populated for enhanced project information
  • Parametric visibility range control for floor and ceiling

Native .rfa file, part of the PD Revit electrical families library.
